Nome
/ Name |

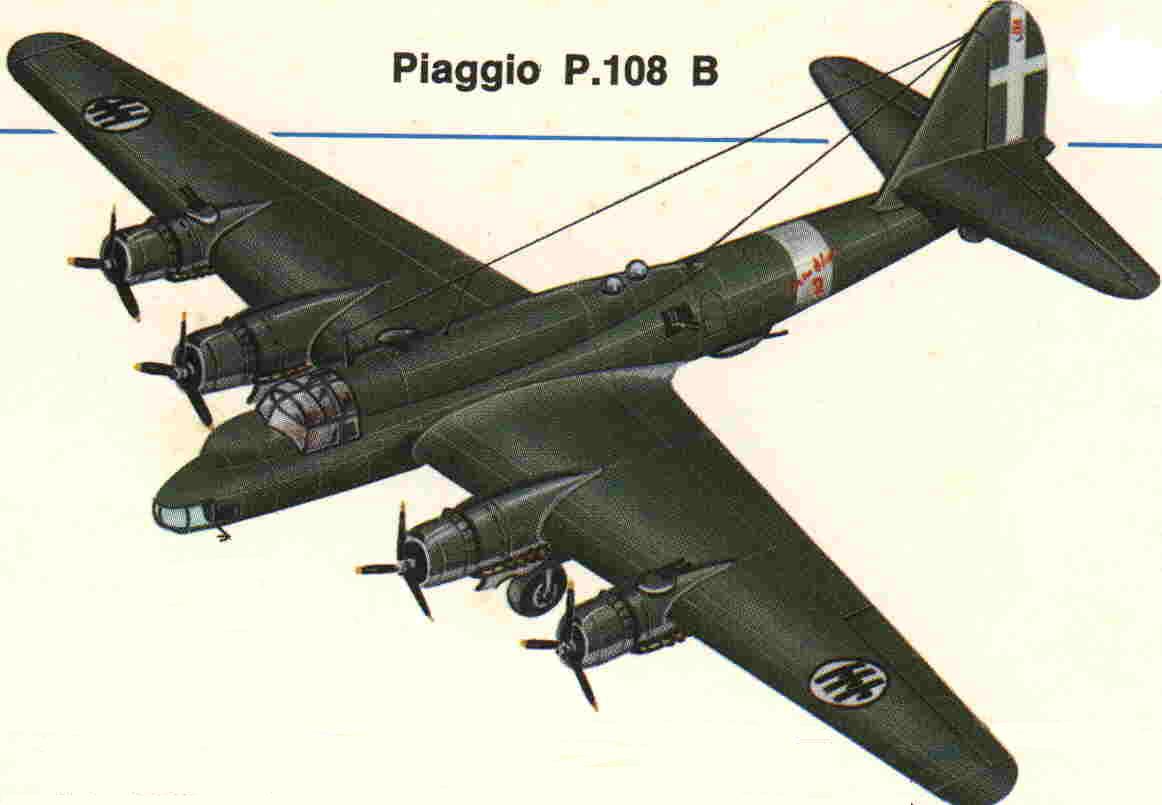

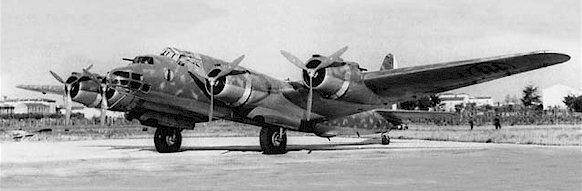

Piaggio P 108 b
(bombardiere) |
Carattestistiche/ Type |
Bombardiere
pesante monoplano quadrimotore |
Anno di Costruzione Year of constr. |
1939 |
Primo Volo/ First flight |
novembre 1939 |
Progettista/ Eng. |
Ing. Giovanni
Casiraghi |
Equipaggio n. /Crew |
6 |
Ap. Alare / mt. Span wings |
32,00 |
Lunghezza/ mt. Lenght |
22,92 |
Altezza/ mt. Height |
7,70 |
Sup. Alare mq / Wing area |
135,34 |
Motore -i / Power Plant-s |
4 Piaggio P.XII
RC35 da 1350cv ciascuno a 3500mt. |
Peso max / Max weight |
29885 kg. |
Peso a secco / Empty weight |
17320 kg. |
Carico utile / Loaded weights |
3500 kg. di bombe |
Armamento / Armament |
6 mitr. da 12,7
mm + 2 mitr. da 7,7mm |
Vel.
max/ Max speed |
419
km/h a 3900mt. |
Tangenza prat. / |
8050
mt. (max) |
Autonomia / Range |
3520
km |
Produzione / Production |
23
esemplari versione B |
